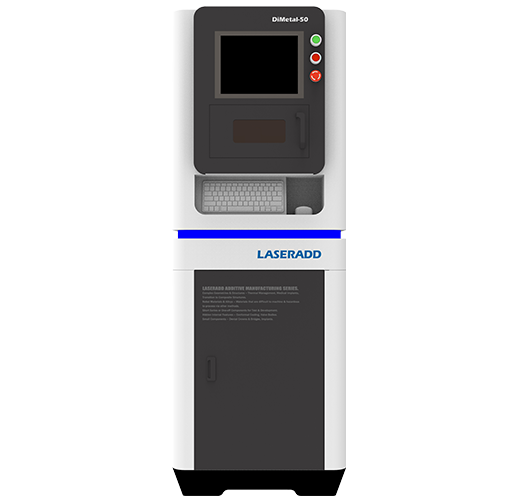

DiMetal-50

Application: jewelry, dentistry, scientific research and education industries

DiMetal-50

Introduce

In order to meet the needs of high-precision parts and research and development of small laser selective melting equipment, forming precision up to 20μm, is the highest forming precision SLM equipment on the market, can achieve high precision, high quality forming, mainly used in jewelry, dentistry, scientific research and education and other industries precision small parts research and development and production

Application

  • Research and development of new material process experiment
  • education
  • scientific research

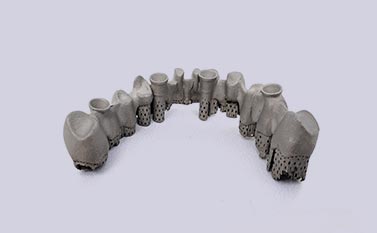

  • dentistry
  • Jewellery

Advantage

Technology innovation

Lejia original -20μm ultra-small laser spot

Powder technology

300g powder boot

smart

Fully pop-up piston

The new system

Lejia fresh wind protection system

Parameter

  • Device name

    laser

    Scanning system

    Scanning speed

    Molding cavity size

    The thickness of the layered

    Feeding way

    Molding material

    The operating system

    The control software

    The data format

    The power supply

    External dimensions of equipment

    The environment temperature

  • DiMetal-50

    Infrared Ytterbium doped fiber laser, 70W (other power lasers are supported)

    High precision scanning galvanometer

    Top 7 m/s

    50mm*50mm*50mm

    0.02 mm to 0.1 mm

    Double cylinder one-way powder supply

    Stainless steel, cobalt chromium alloy, titanium alloy, high temperature alloy, precious metals and other metal powder

    Windows 7 64 bits

    Independent development of control and path planning software system

    STL file or other convertible format

    220V 50/60 hz 16A 1KW single-phase power

    616mm (L) *810mm (W) *1750 (H)

    Operating temperature 15-26℃
